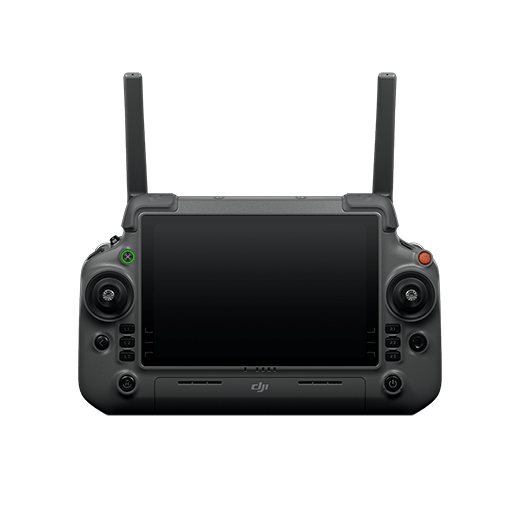

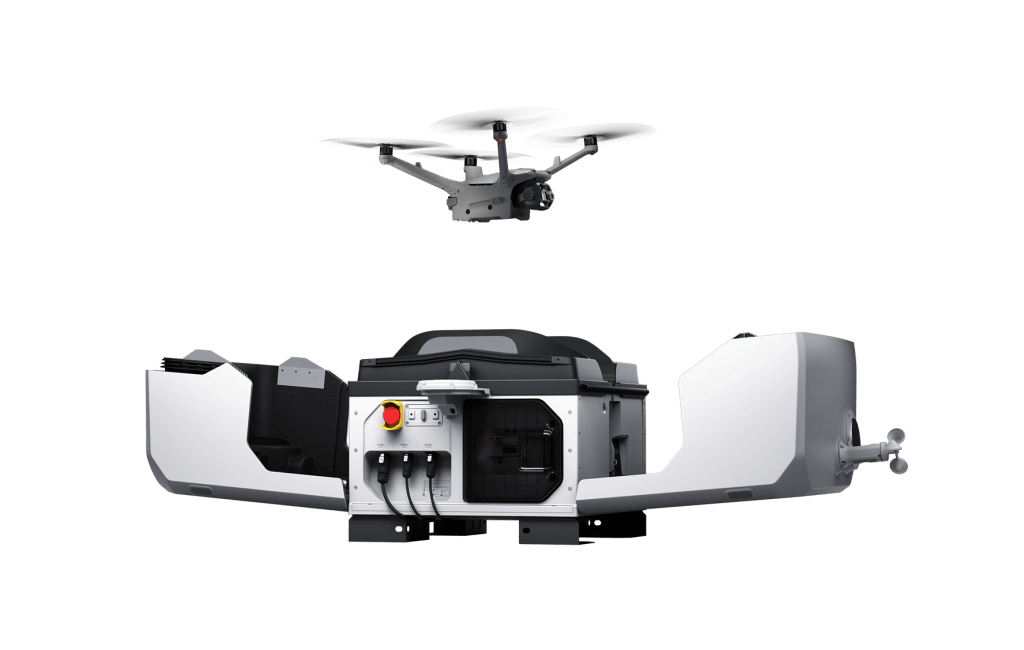

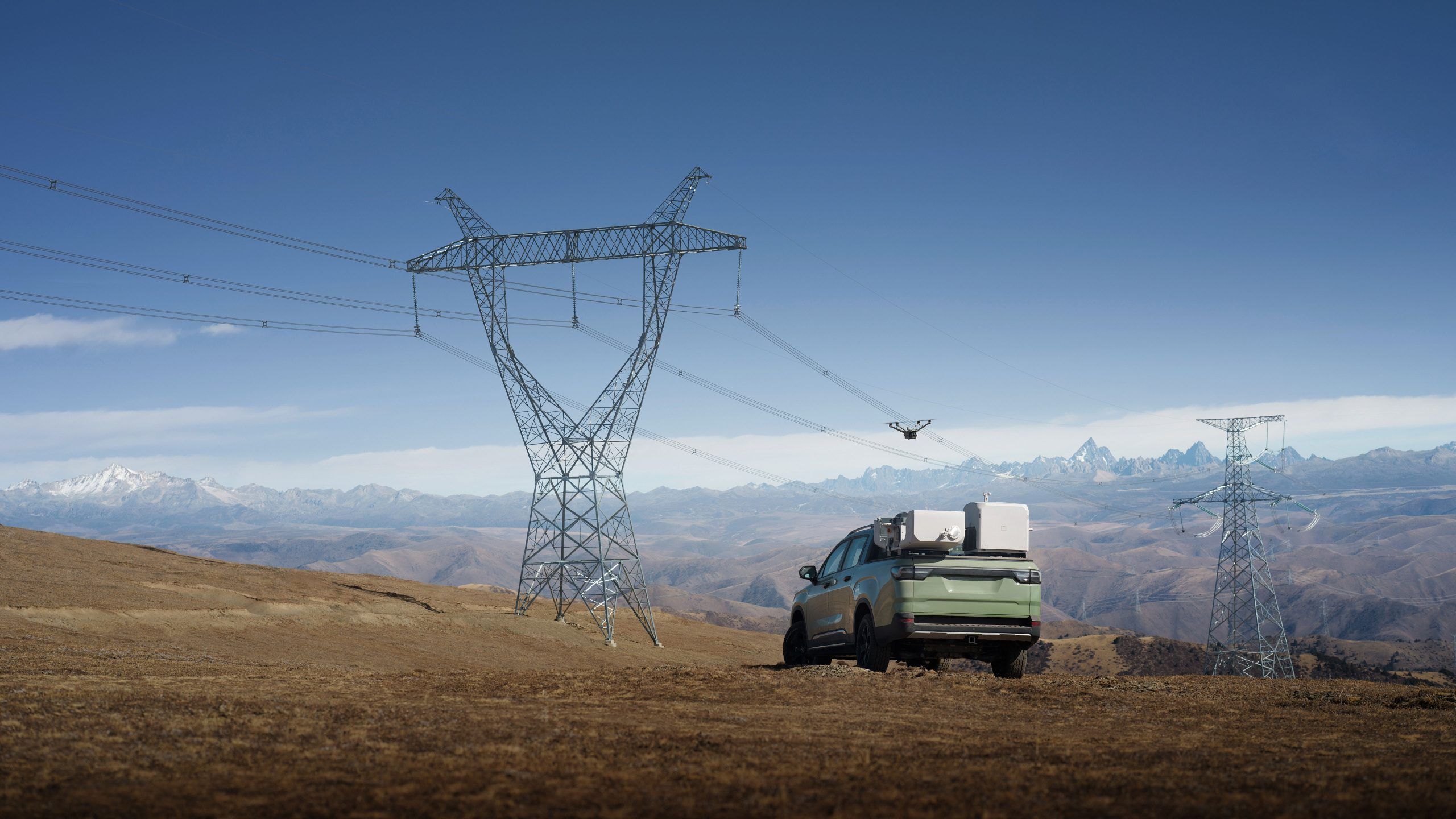

Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance. They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2’s intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.
Highest Operating Temperature

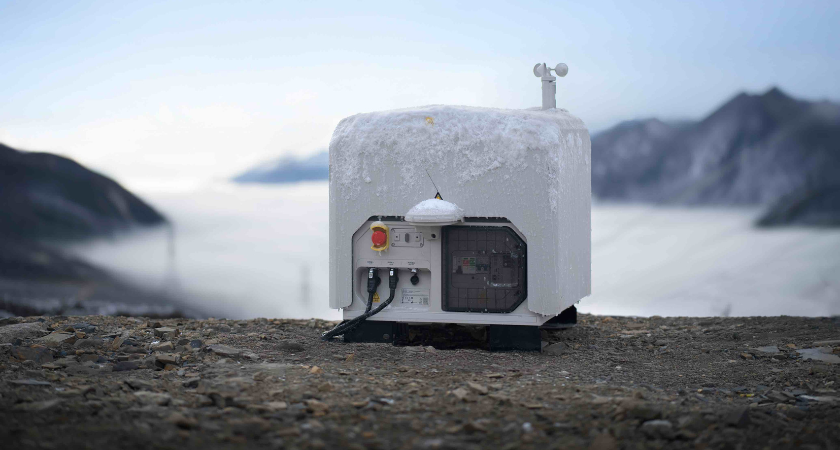

Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).
Lowest Operating Temperature

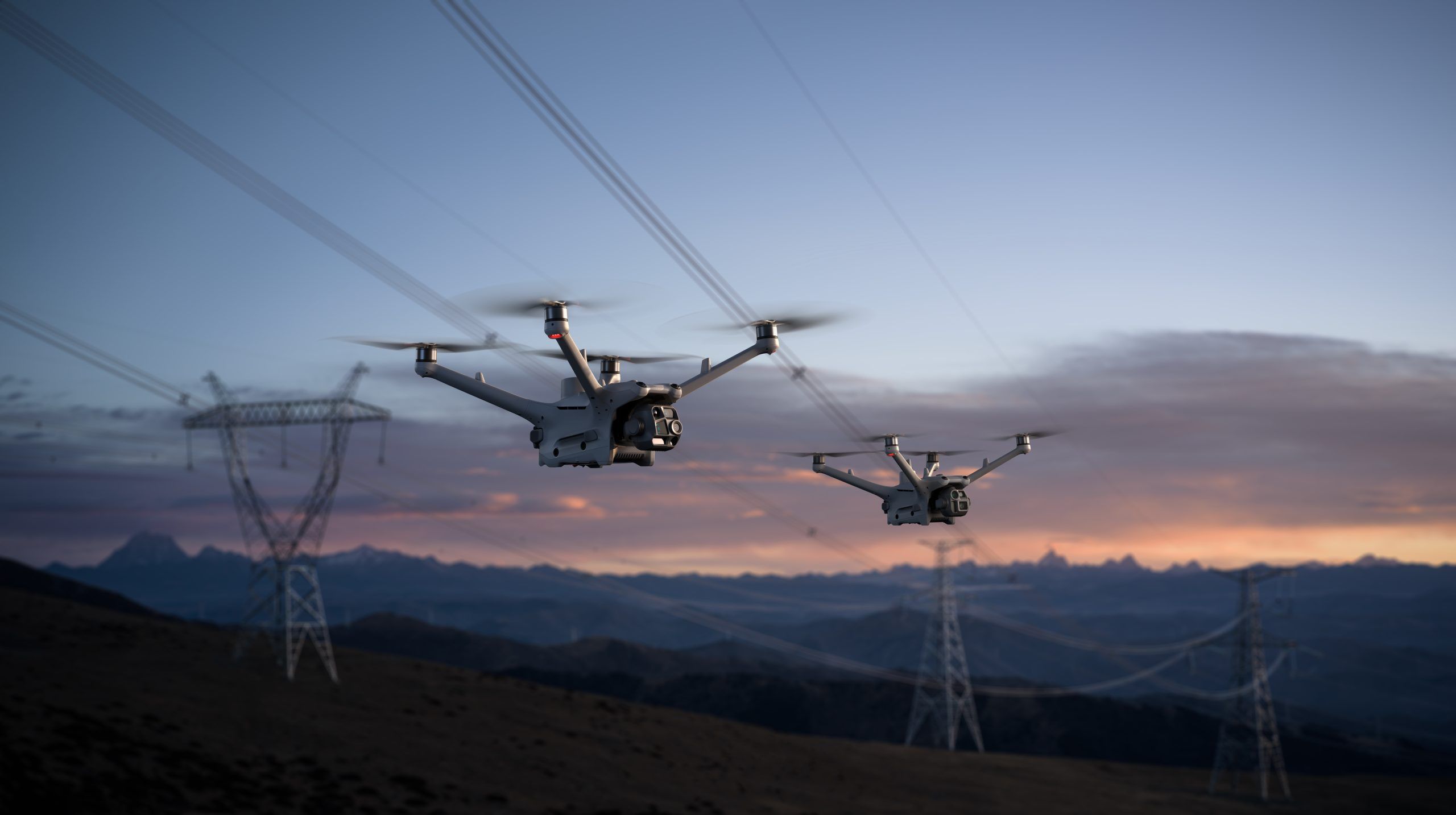

Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes. [1]
Max Wind Speed Resistance
Dock 3’s design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.
[2]DJI Matrice 4D/4TD [2]
Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.

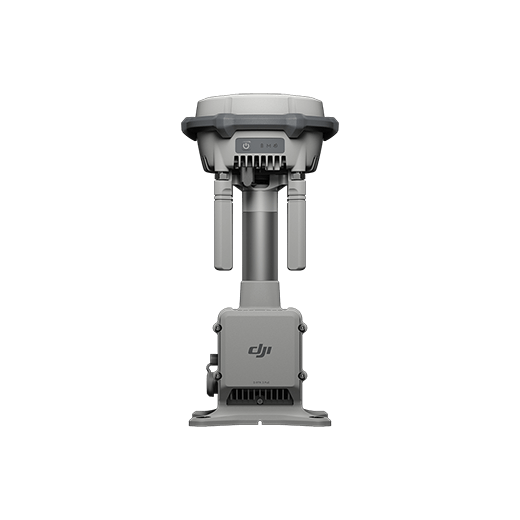

Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.
Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.

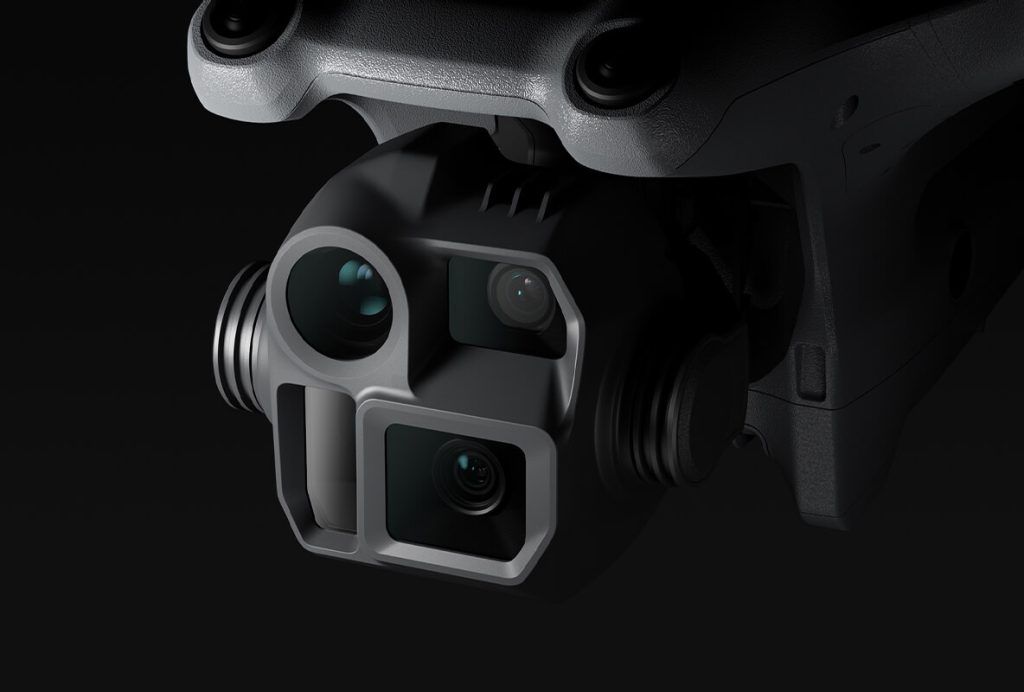

4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D) [7]

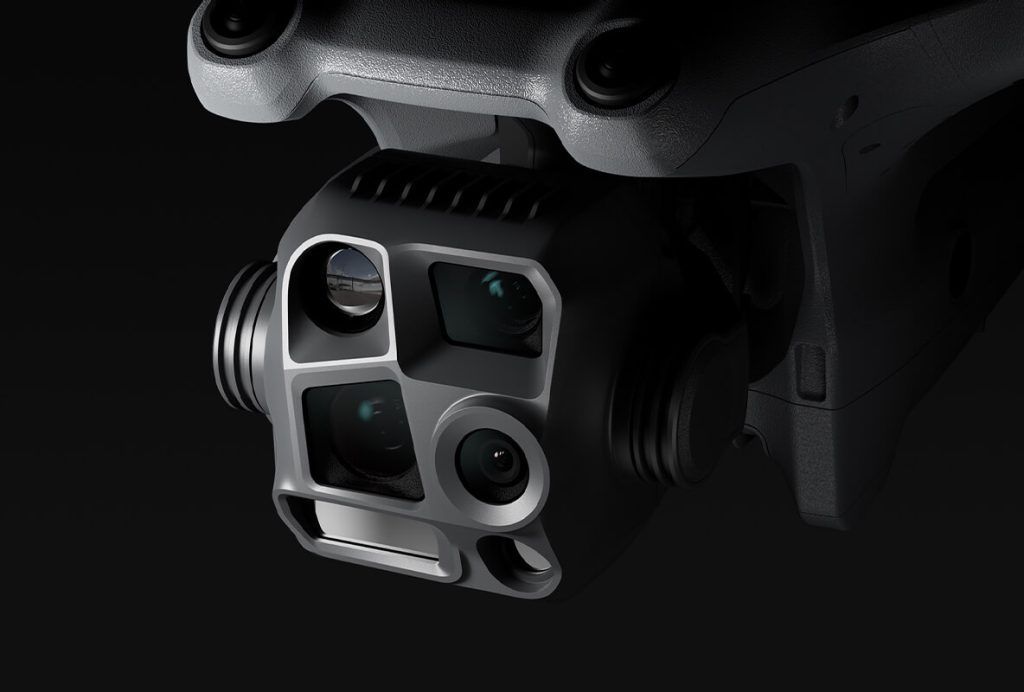

1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D) [7]
6° FOV, 100m [10] Illumination Distance
640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode

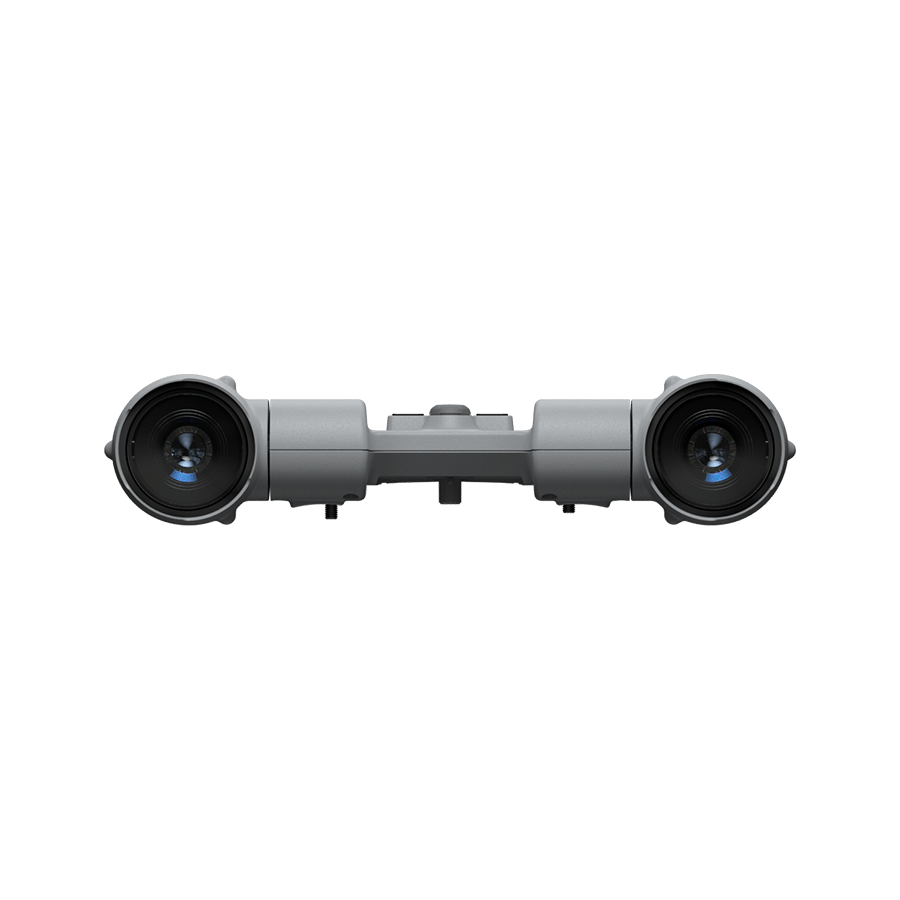

Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing [11] visual low-light positioning and obstacle sensing capabilities.

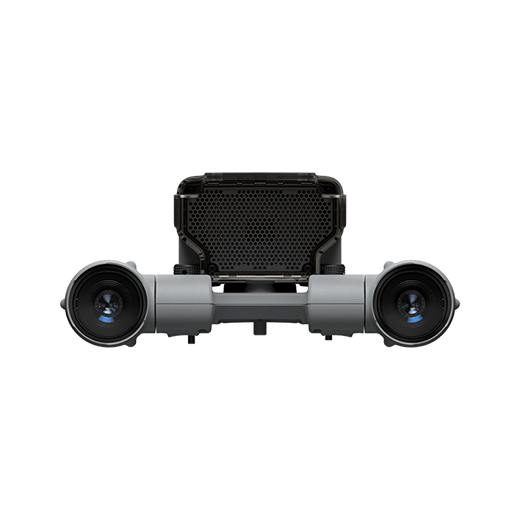

The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m. [10]
Matrice 4TD’s infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. [16]
The 48 MP tele camera captures details, like signs, from up to 250 m away. [17] When using Matrice 4TD’s tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.
Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, [5][18], and real-time terrain following to meet various mapping requirements.

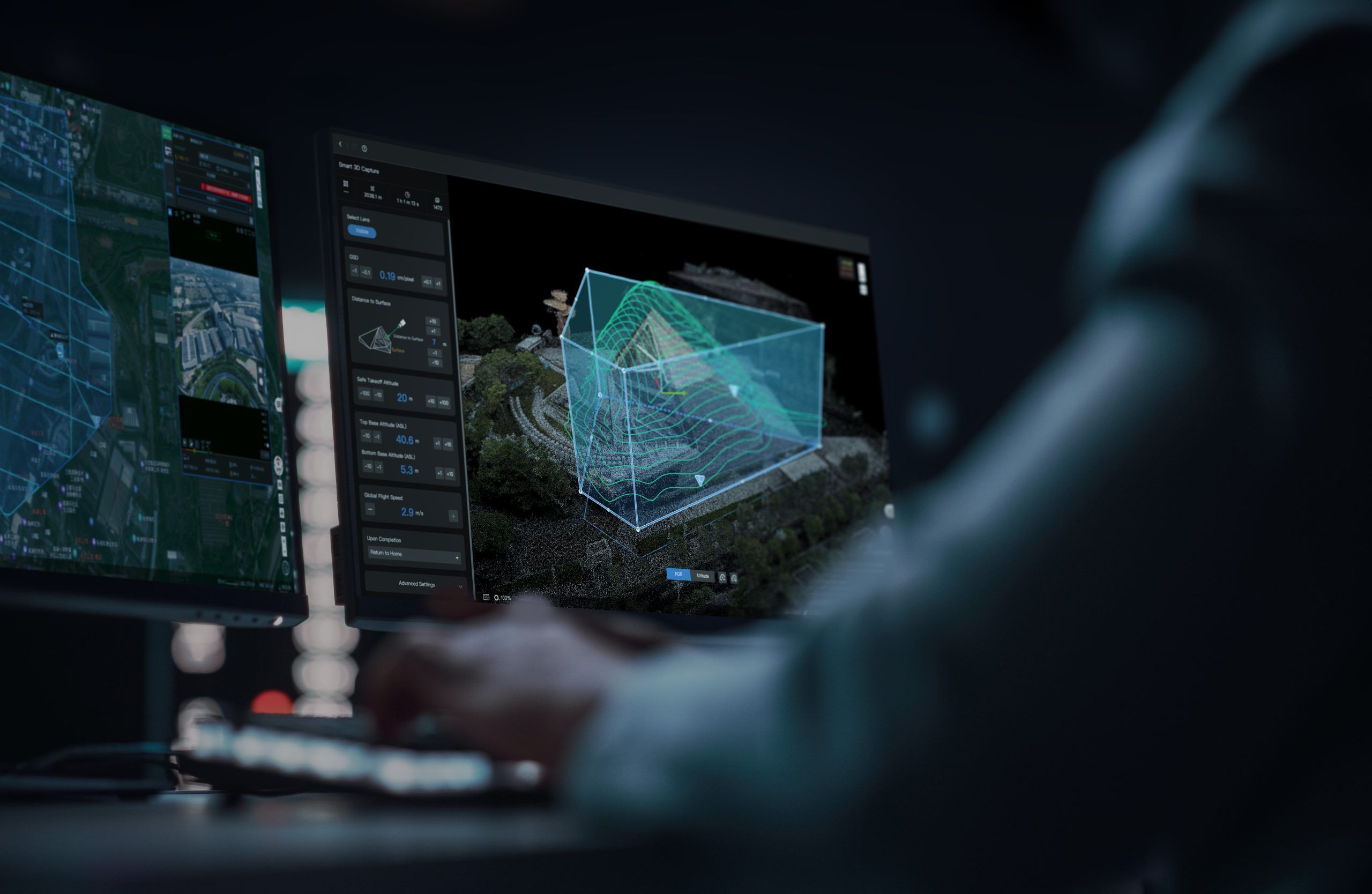

DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes [5], geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Provides necessary model training tools and assist in the third-party developer certification process, helping expand new intelligent applications. [5]
E-Port and E-Port Lite encryption authentication ensure secure and worry-free payloads, enabling the Matrice 4D Series to have broader application scenarios.
Mobile SDK 5 simplifies the development of apps to control the Matrice 4D Series. Mobile SDK 5 is fully open source and comes with production code samples of core DJI Pilot 2 modules, ensuring its reliability.
Through DJI FlightHub 2’s FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of data.
With DJI Pilot 2’s built-in Cloud API (MQTT-based protocol) you can directly connect the Matrice 4D Series to third-party cloud platforms. Access the drone’s hardware, video live-stream, and photo data without having to develop an app.
Enable more functionality by connecting third-party payloads [4] such as parachute via the aircraft’s E-Port or remotely control added payloads via DJI FlightHub 2. [22] It also features an additional port for PSDK payload at the rear.
With the DJI Terra API, users can integrate its powerful mapping capabilities into their own platforms, achieving automated 2D and 3D reconstructions. Additionally, users can customize photogrammetry workflows as needed, allowing the Matrice 4D’s operational results to meet the needs of various industry applications better.
The following prices do not include the Dock 3 warranty. Installation, deployment and maintenance services and software are also charged separately. For more details, please contact your local distributor.
